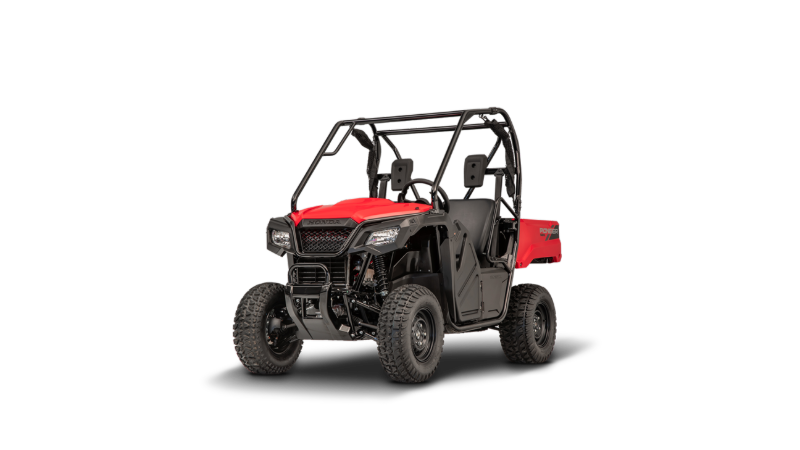

Honda SXS 520

£11,515.00 +VAT

The Pioneer 520’s understated size makes it incredibly versatile. At just 1270 mm wide, it can go where other side-by-sides can’t, including narrow trails and if you ever need to transport it, it will fit on a trailer. In fact, with a curb weight of only 483Kg, it’s one of the lightest petrol side by side on the market.

Category:
Specifications
Classification Side X Side
Engine 518cc liquid cooled single cylinder four-stroke
Carburation Electronic fuel injection (PGM-FI), 36mm throttle body
Ignition Full-transistorized type with electronic advance
Starter Electric
Transmission Five-speed automatic transmission with AT/MT modes with paddle shifting and reverse. Two drive modes include 2WD and 4WD
Drive Direct front and rear driveshafts
Front Suspension Independent double-wishbone; 5.8 inches of travel
Rear Suspension Independent double-wishbone with preload adjustablility; 5.9 inches of travel
Power Steering No
Front Brakes Dual 200mm hydraulic disc
Rear Brakes 170mm hydraulic disc
Front Tyres 24 x 8-12
Rear Tyres 24 x 10-12
Fuel Capacity (Litres) 15 litres
Bore x Stroke (mm) 96.0mm x 71.5mm
Dimensions x Length (mm) 2670
Dimensions - Width (mm) 1270
Dimensions - Height (mm) 1810
Wheelbase (mm) 1850
Ground Clearance (mm) 215
Towing Capacity (kg) 454
Front Rack Capacity (kg) N/A
Rear Rack Capacity (kg) 204kg (Bed Capacity)
